PRODUCT / Allegro Central Vacuum Power Units 220-240v / MUA63E

MUA63E

Allegro Aspiración Central Vacuum Power Unit

DA VINCI

Our heavy duty powerful unit is ideal, primarily for industrial and commercial application, and homes up to 800 m2.



Allegro's Eco-line™Green Powered models are designed for high efficiency performance to save on electricity and are rated to have twice the life of regular blower motors.



SPECIFICATIONS

Motor:

2-Stage, 167.6 mm, Single Speed, All metal construction, Bypass Tangential Discharge, 10mm shaft with double ball bearings.

Air Watts:    646
Air Flow:
65,5 l/sec (litres per second)
Suction Power:
3.401 mm water lift (mm H20 )
Max. Amps:
7,4
Volts:
220-240v
Input Power:
1.650 Watts



FEATURES

Construction:
32 litre (8 US gal.) dirt pail - 14" dia. x 43 " height. All steel construction (40 lb).

Filtration:
Self-cleaning, no maintenance, patented
 Micro-Fibre Filtration Systems. This permanent filtration system never needs to be replaced, or washed, and there are no expensive filter replacement costs.

Finish:
Primer and Environmentally friendly Electrostatic Powder coat. Guaranteed for life against corrosion perforation.

Exhaust:
The unit is fully ventable to the outside.

 Image titleImage titleImage title  Image title



Click here for Allegro Commercial Central Vacuum Technical Data / Bulletin

Visit our Central Vacuum Frequantly Asked Q & A.




Image title

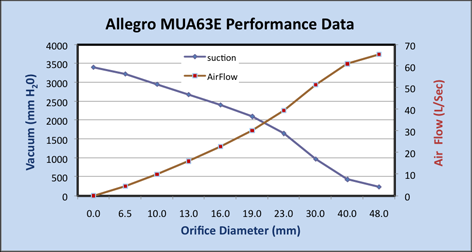

Allegro MUA63E Power Unit Performance Characteristics







Qty.:
899.99 USD
Add to cart

Technical characteristics

Main parametersModel - MUA63E
Suction Power3.401 mm water lift
Air-Flow65,5 l/sec
Air-Power646
Motor2 Stage, 168 mm, Bypass, Tangential Discharge
Power Unit Voltage~ 220 - 240 v
Input Power1.650 watt
Shipping Weightyes
Max. Amps7,4
Hertz50 Hz
Dust IntakeDual
