PRODUCT / Central Vacuum Power Units / MU5800

MU5800

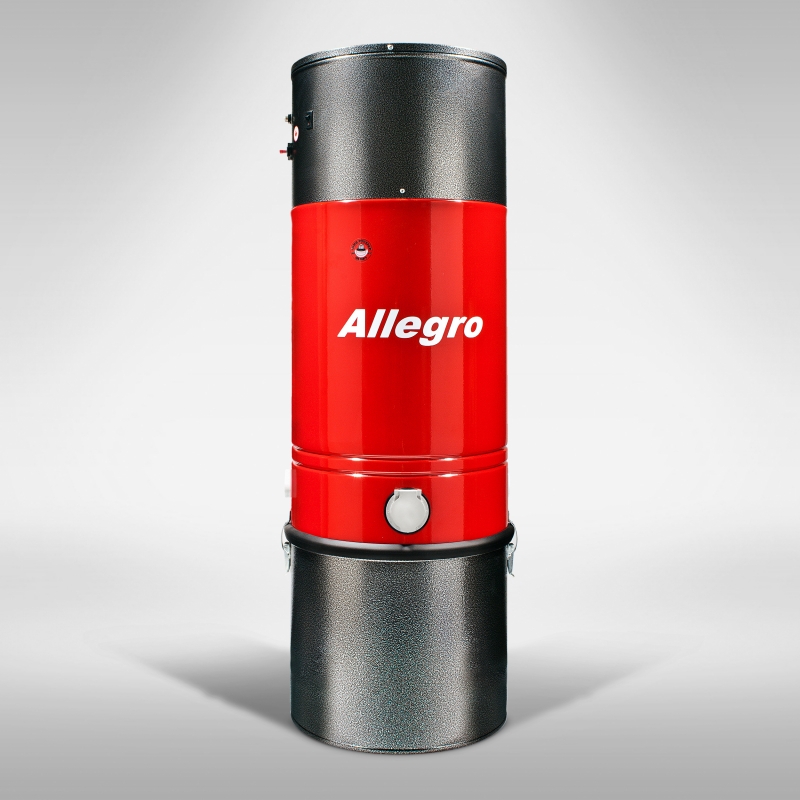

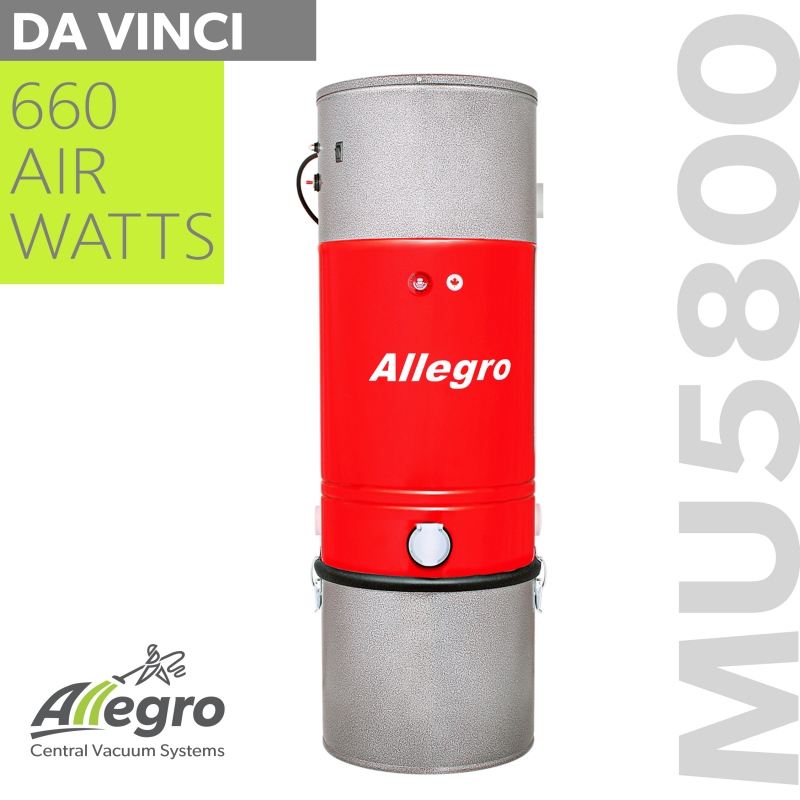

DA VINCI Allegro Central Vacuum System

Allegro MU5800 DaVinci Central Vacuum is a heavy-duty powerful unit and is ideally rated for primarily for commercial application and homes up to 10,000 sq. ft. (1000m2



UPC: 609207104025









Image title





Allegro's Eco-Line Green Powered models are designed for high efficiency performance to save on electricity and are rated to have twice the life of regular blower motors. It saves money and the environment

- Now that is eco-friendly!


Motor:

 Lamb powered, 2-Stage AMETEK® 6.6" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  660 Air Watts of efficient cleaning power
Air Flow:  Air flow of 138.8 cubic feet per minute
Suction Power:  Excellent suction power of 131.5 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 14.0 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1680 watts of powerful performance making cleaning that much easier!

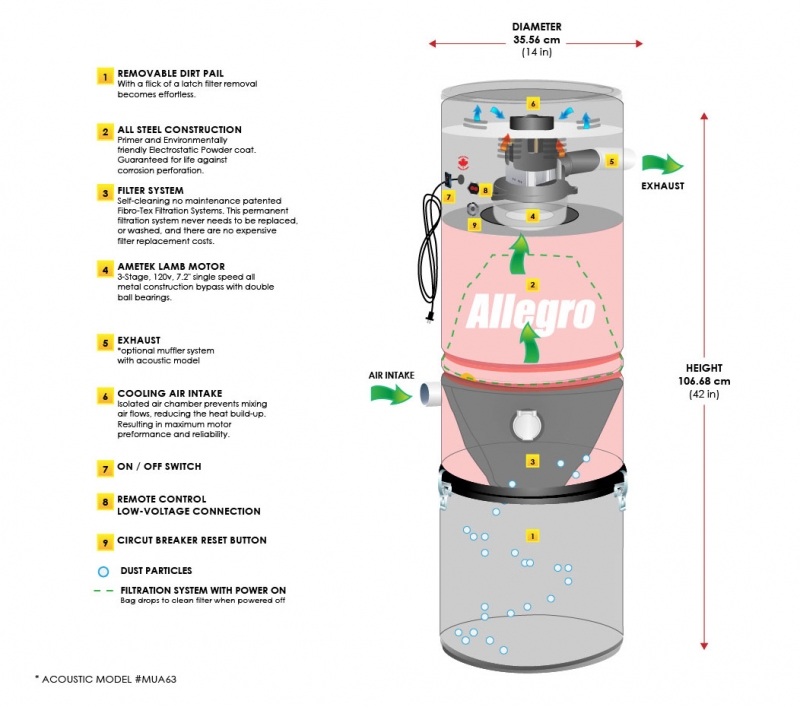

Allegro MU5800 DaVinci Central Vacuum System Diagram

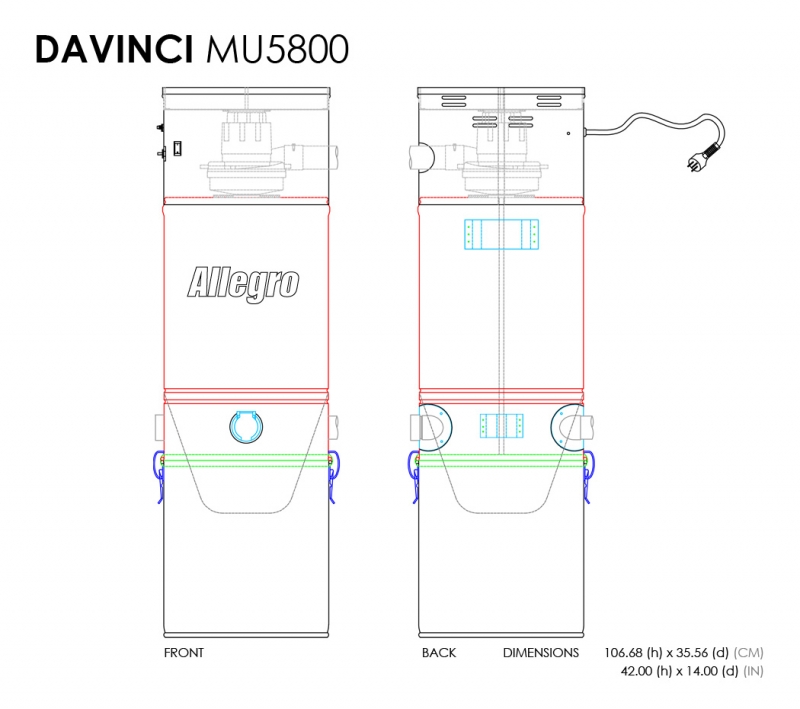

Construction: 14" width  x 43" height with a 8 gallon dirt pail. Made of all steel construction. 41lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems. This permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

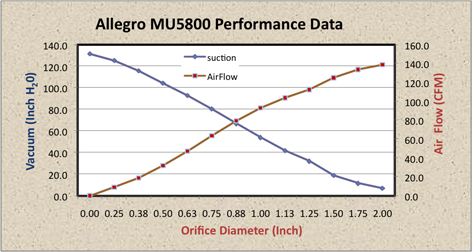

Central Vacuum Performance Graph

Image title Image title Image title



Central Vacuum Power Unit Technical Data Sheet


Central Vacuum Frequently Asked Questions & Answer

Image title



Qty.:
754.99 USD
Add to cart

Technical characteristics

Main parametersModel - MU5800
Cleaning Area10,000 sq. foot
Suction Power131.5 inch water lift
Air-Flow138.8 CFM
Air-Power660
Motor2 Stage, 6.6", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1680 watt
Shipping Weightyes
Max. Amps14.0
Hertz60 Hz
Dust IntakeDual
