PRODUCT / Central Vacuum Power Units / MU3400

MU3400

COMPACT Allegro Central Vacuum System

Allegro MU3400 rated for smaller homes, condominiums or apartments up to 2,500 sq. ft. (250 m2)




Motor:

 Lamb powered, High Performance AMETEK® 5.7" motor
Air Watts:  655 Air Watts of efficient cleaning power
Air Flow:  Air flow of 135 cubic feet per minute
Suction Power:  Excellent suction power of 137 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 13.8 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1675 watts of powerful performance making cleaning that much easier!



Allegro MU3400 Line Drawing

Construction: 11.25" width  x 27" height made of all steel construction
Filtration:  Disposable filter bag. An inexpensive collector that normally needs to be replaced about 2-3 times a year.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

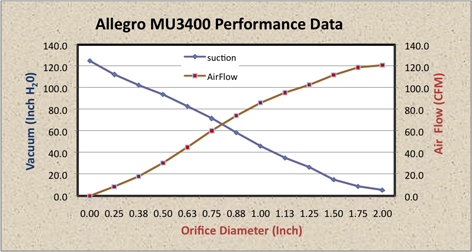

Allegro Central Vacuum MU3400 Air-Flow Performance

Image title Image title Image title


Allegro Standard Technical Specification



Frequently Asked Questions

Image title

Qty.:
399.99 USD
Add to cart

Technical characteristics

Main parametersModel - MU3400
Cleaning Area2,500 sq. foot
Suction Power137 inch water lift
Air-Flow135 CFM
Air-Power655 Air Watts
Motor2 Stage, 5.7"
Power Unit Voltage~ 110 - 120 v
Input Power1605 Watts
Power Unit Size12" diameter x 27.5" tall
Collection Capacity4 gallon (15 L)
Utility Inletno
Shipping Weight36 lb
Max. Amps14.4
Hertz60 Hz
Dust IntakeSingle
