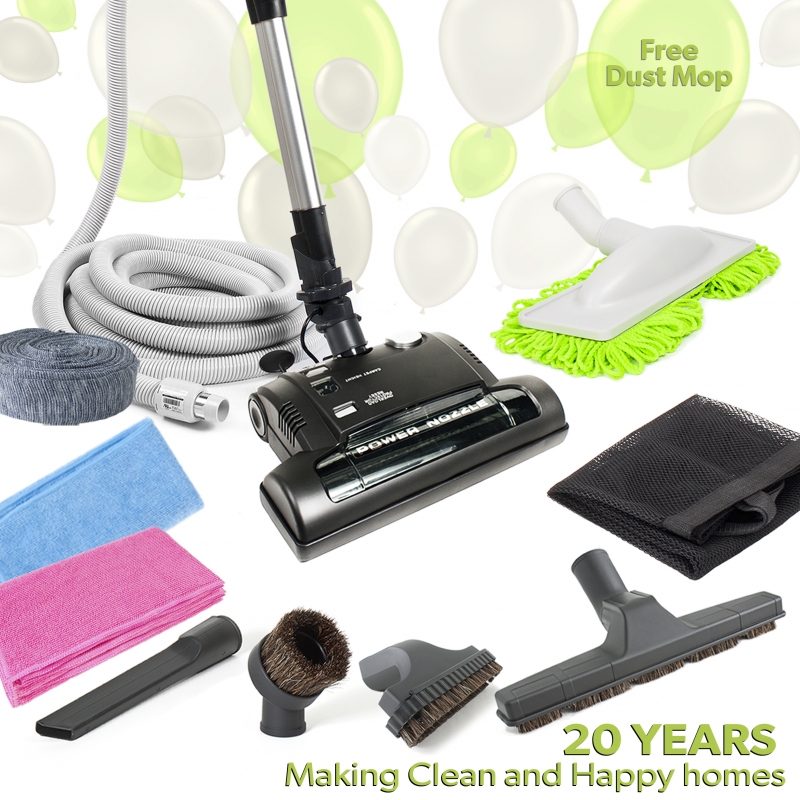

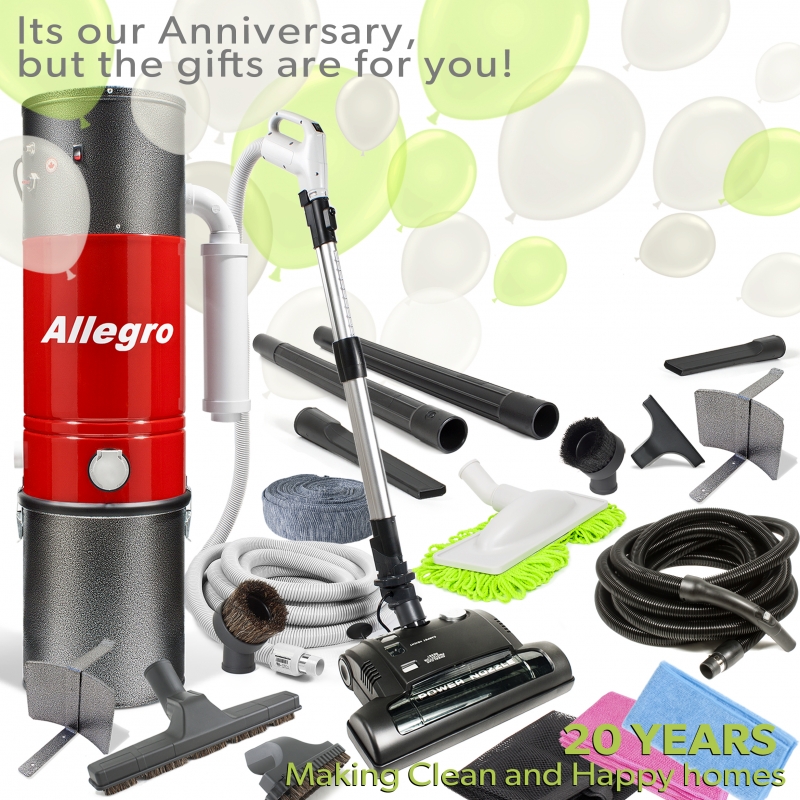

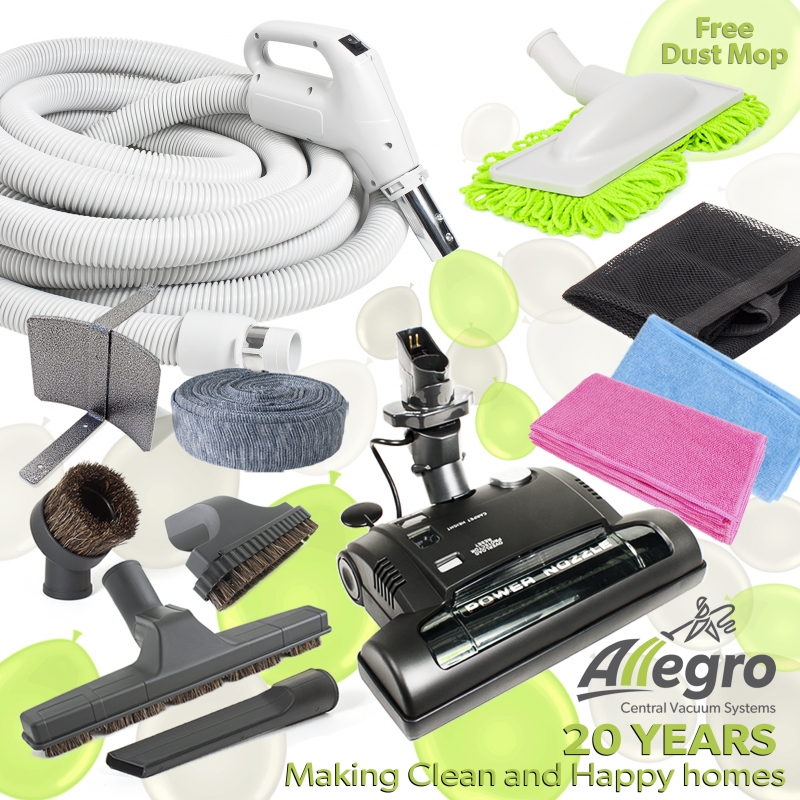

The Package Includes:
MUA50 POWER UNIT
UPC Code: 609207104063
Motor: 3-Stage, 5.7" single speed all metal construction tangential bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.

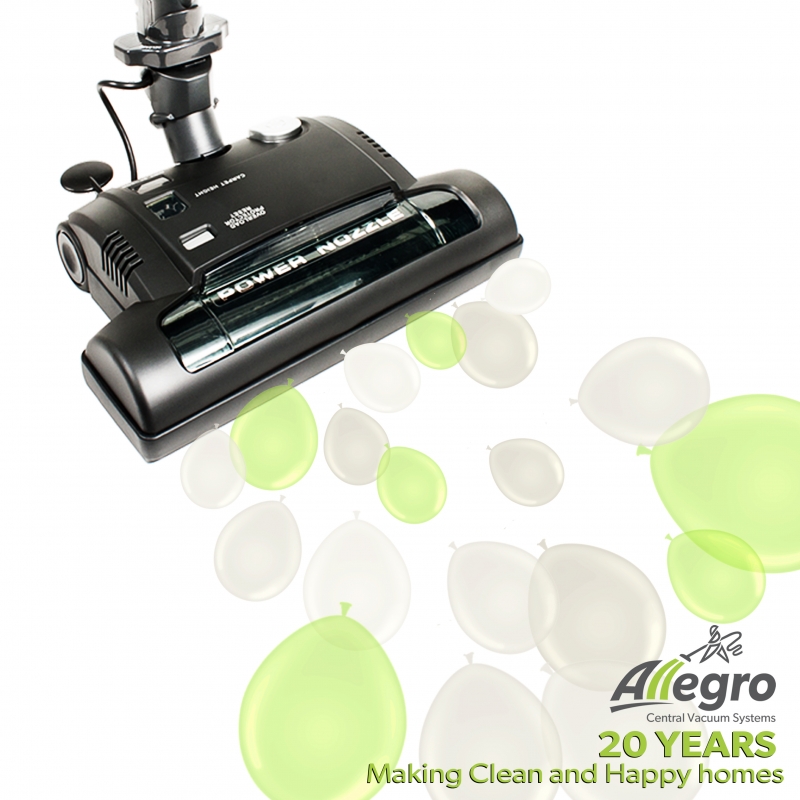

ELECTRIC POWERHEAD
A Smart Electric Powerhead with manual height adjustment, quick-release neck and telescopic wand.
Headlight to improve viewing angle
13.5" cleaning width
Electronic
control low profile electric power nozzle with gear belt. Heavy duty -
high performance, low-noise magneto-electric motor with automatic
cut-out
Optimal cleaning is achieved with a durable V-shaped roller brush. Built-in on/off safety switch
ELECTRIC HOSE
Electric Hose: 30 feet dual voltage crush-proof lightweight hose with ergonomic handle (3-way control switch) - on/off for vacuum / power nozzle.
Configuration: 8 foot "Pigtail" supply cord with ~120 v standard 2 prong plug
"Direct Connect" configuration is also available upon request.

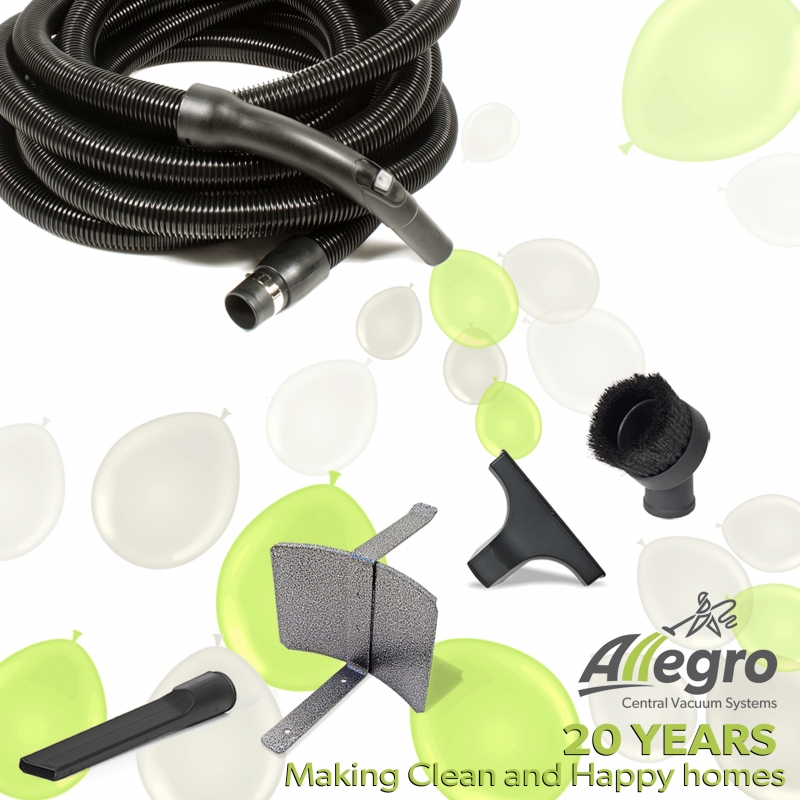

ACCESSORIES INCLUDED
10" Floor Tool with non-scratch natural bristles
Upholstery Nozzle and slide-on brush with natural bristles
Dusting Brush with non-scratch natural bristles
9" Crevice Tool
Epoxy Coated all metal sturdy Hose Rack
EXTRA ACCESSORIES
Extra Set of Wands (ZAS041-P)
30 Foot Hose Cover / Sock (ZAS046)
Mesh Tool Bag (ZAS19-M)
Exhaust Muffler (ZIK020)
Microfiber Dust Mop with a removable and washable velcro, ideal for hardwood flooring (ZAS036-MF)
Microfiber Cleaning Cloth
UTILITY GARAGE / CAR CARE KIT (ZAS051)
Allegro Central Vacuum Technical Review
Visit our Central Vacuum Frequently Asked Questions & Answer
Main parameters | Model - PKA50003 |
---|---|
Cleaning Area | 6,000 sq. foot |
Suction Power | 141.8 inch water lift |
Air-Flow | 124.1 CFM |
Air-Power | 575 |
Sound Level dB(a) | 64 |
Motor | 2 Stage, 5.7", Bypass, Tangential Discharge |
Power Unit Voltage | ~ 110 - 120 v |
Max. Amps | 15.7 |
Carpet Height Adjust | 6 Level |
Headlight | yes |
Hertz | 60 Hz |
Hose Length | 30 Foot (9 m) |
360 Degree Swivel Handel | yes |
Hose Operating Voltage | Dual voltage ~ 120 v and 24 v dc |
Suction Relief Valve | yes |
Wall End Cuff Size | 1.5 inch O.D. |
Warranty | 7 Years |
