PRODUCT / Central Vacuum Power Units / MUA50

MUA50

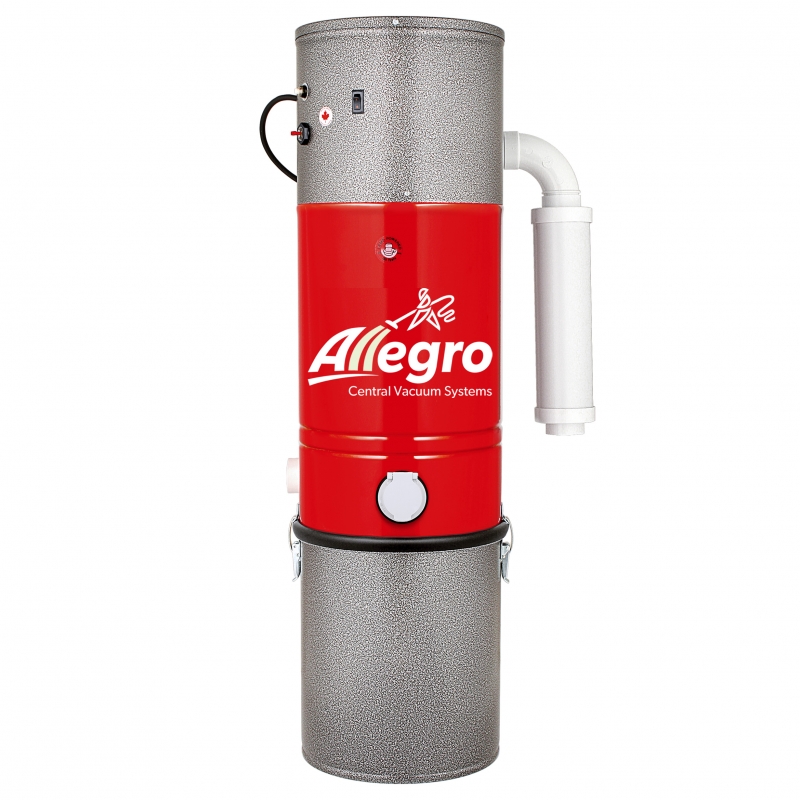

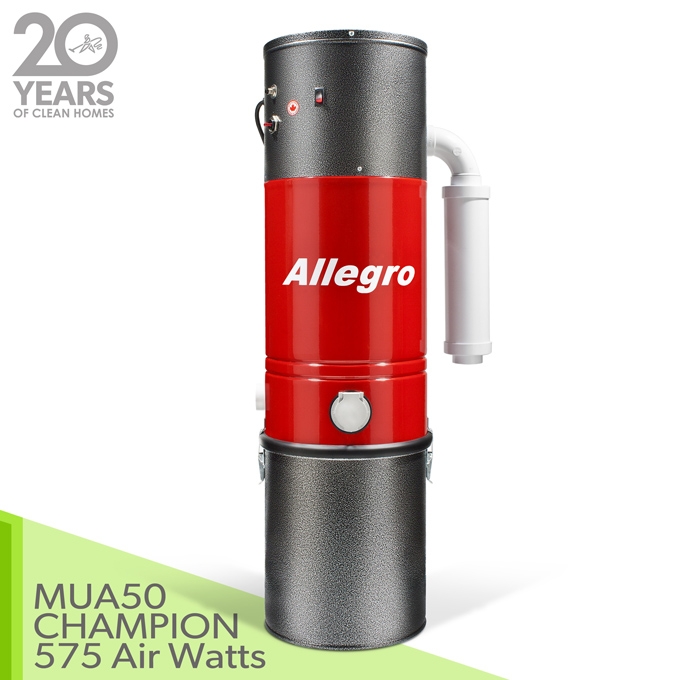

CHAMPION Quiet Allegro Central Vacuum Power Unit

Allegro MUA50 has 15% more air power than the MUA47 and is designed for homes up to 6,000 sq. ft. (600 m2)

UPC: 609207104063


Motor:

 Lamb powered, 3-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  655 Air Watts of efficient cleaning power
Air Flow:  Air flow of 108 cubic feet per minute
Suction Power:  Excellent suction power of 162 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 15.7 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1855 watts of powerful performance making cleaning that much easier!

 Image title

Construction: 12" width  x 40" height with a 5 gallon dirt pail. Made of all steel construction. 28lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems . This permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

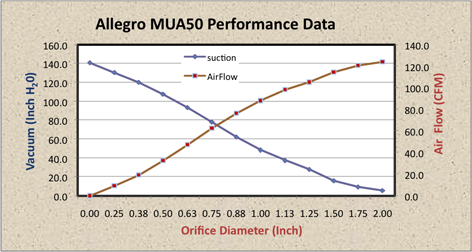

Allegro MUA50 Maximum Air Flow Performance

Image title Image title Image title

Allegro Acoustic Technical Bulletin

Frequently Asked Questions

 Image title

Qty.:
620.00 USD
Add to cart

Technical characteristics

Main parametersModel - MUA50
Cleaning Area6,000 sq. foot
Suction Power141.8 inch water lift
Air-Flow124.1 CFM
Air-Power600 Air Watts
Motor3 Stage, 5.7", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1855 watt
Shipping Weightyes
Max. Amps15.7
Hertz60 Hz
Dust IntakeSingle

Replacement parts for - MUA50
