UPC: 609207104018
Motor: | Lamb powered, 3-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity | |
Air Watts: | 600 Air Watts of efficient cleaning power | |
Air Flow: | Air flow of 124 cubic feet per minute | |
Suction Power: | Excellent suction power of 142 inch H2O lift | |
Max Amps: | Save on energy costs with a maximum current of 15.7 Amps | |
Volts: | Compatible with standard ~110 - 120v service. | |
Input Power | 1855 watts of powerful performance making cleaning that much easier! |

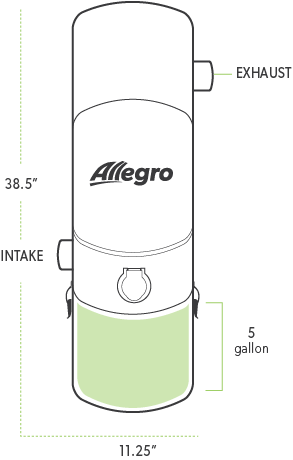

Construction: | 12" width x 40" height with a 5 gallon dirt pail. Made of all steel construction. 32 lbs. | |
Filtration: | Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems. This permanent filtration system never needs to be replaced or washed. | |
Finish: | Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation. |
Allegro Standard Central Vacuum Technical Bulletin
Allegro's Frequently Asked Questions

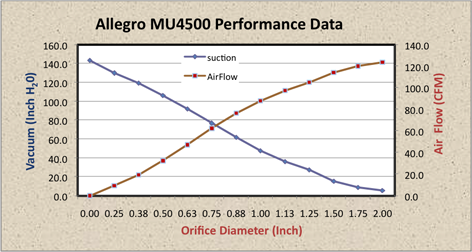

Main parameters | Model - MU4500 |
---|---|
Cleaning Area | 6,000 sq. foot |
Suction Power | 141.8 inch water lift |
Air-Flow | 124.1 CFM |
Air-Power | 600 Air Watts |
Motor | 2 Stage, 5.7", Bypass, Tangential Discharge |
Power Unit Voltage | ~ 110 - 120 v |
Input Power | 1855 watt |
Max. Amps | 15.7 |
Hertz | 60 Hz |
Dust Intake | Single |
