PRODUCT / Central Vacuum Power Units / MU4200

MU4200

Allegro Central Vacuum System 3,000 sq. ft. Classic Power Unit MU4200




Allegro MU4200 Classic Central Vacuum has excellent perfomance for homes up to 3,000 sq. ft. (300 m2)



UPC: 609207104001


Motor:

 Lamb powered, 2-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  525 Air Watts of efficient cleaning power
Air Flow:  Air flow of 121 cubic feet per minute
Suction Power:  Excellent suction power of 125 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 15.7 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power: 1675 watts of powerful performance making cleaning that much easier!

Allegro Central Vacuum MU4200 Line Drawings

Construction: 12" width  x 40" height with a 5 gallon dirt pail. Made of all steel construction. 28 lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems. This permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

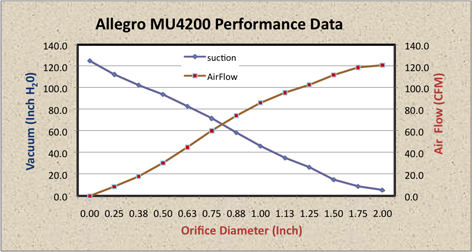

Allegro Central Vacuum MU4200 Performance Data

Image title Image title Image title

Allegro Standard Technical Specification



Frequently Asked Questions



 Image title

Qty.:
449.99 USD
Add to cart

Technical characteristics

Main parametersModel - MU4200
Cleaning Area3,000 sq. foot
Suction Power125 inch water lift
Air-Flow121 CFM
Air-Power525
Motor2 Stage, 5.7", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1675 watt
Power Unit Size12" diameter x 40.3" tall
Collection Capacity5 gallon (19 L)
Utility Inletyes
Max. Amps13.8
Hertz60 Hz
Dust IntakeSingle
