PRODUCT / Central Vacuum Power Units / MUA47

MUA47

CLASSIC Quiet Allegro Central Vacuum 3,000 sq. foot. homes

Allegro MUA47 excellent perfomance for homes up to 3,000 sq. ft. (300 m2)

UPC: 609207104056




Motor:

 Lamb powered, 2-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  550 Air Watts of efficient cleaning power
Air Flow:  Air flow of 121 cubic feet per minute
Suction Power:  Excellent suction power of 125 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 15.7 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1675 watts of powerful performance making cleaning that much easier!

 Image title

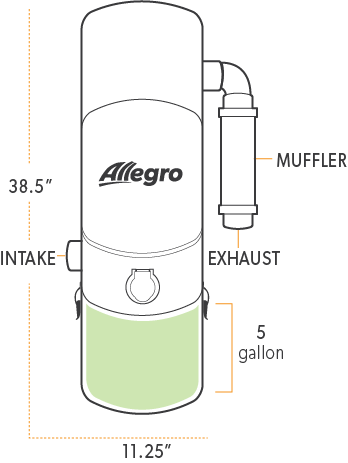

Construction: 11.25" width  x 38.5" height with a 5 gallon dirt pail. Made of all steel construction. 28lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems . This permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

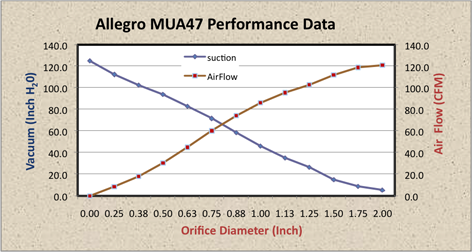

Allegro Acoustic Vacuum Unit Suction Power

Image title Image title Image title



The Power Unit Technical Bulletin

Frequently Asked Questions

 Image title

Qty.:
499.99 USD
444.99 USD
Add to cart

Technical characteristics

Main parametersModel - MUA47
Cleaning Area3,000 sq. foot
Suction Power125 inch water lift
Air-Flow121.0 CFM
Air-Power525
Motor2 Stage, 5.7", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1675 watt
Shipping Weightyes
Max. Amps13.8
Hertz60 Hz
Dust IntakeSingle

Replacement parts for - MUA47
