PRODUCT / Central Vacuum Power Units / MUA75

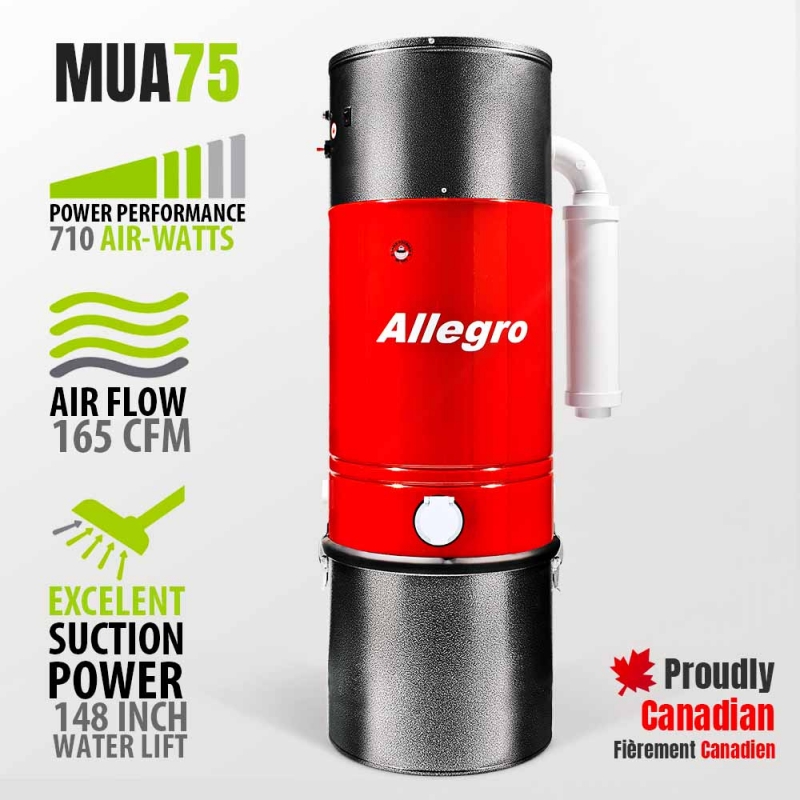

MUA75

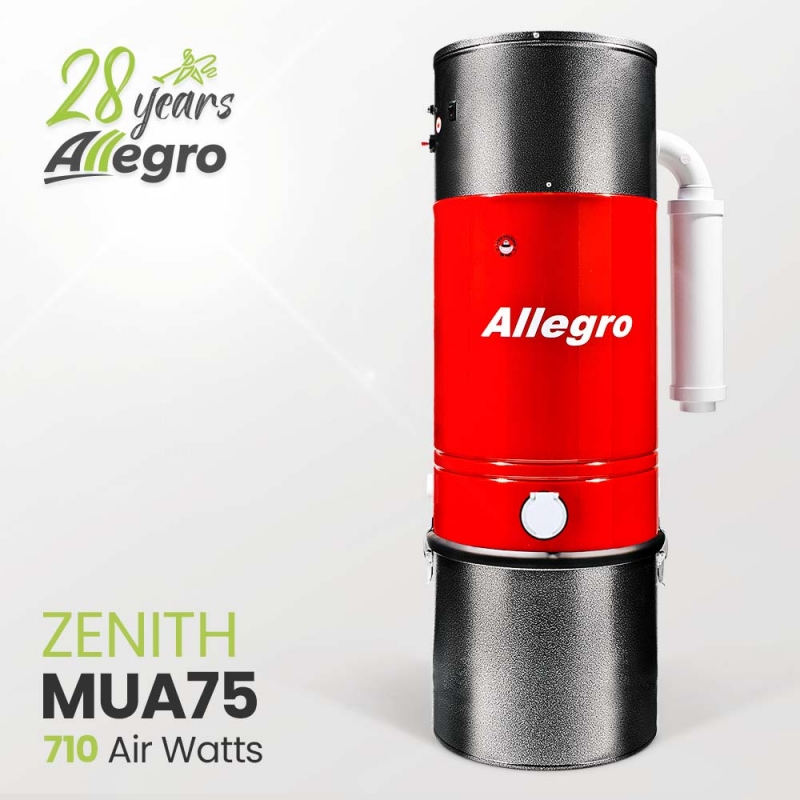

ZENITH Quiet Allegro Central Vacuum System

Allegro MUA75 Acoustic Zenith is a super - powerful unit primarily used in industrial and commercial application or for very large homes up to 15,000 sq. ft. (1500m2)



UPC: 609207104094








Image title





Allegro's Eco-Line Green Powered models are designed for high efficiency performance to save on electricity and are rated to have twice the life of regular blower motors. It saves money and the environment

- Now that is eco-friendly!

Motor:

 Lamb powered, 2-Stage AMETEK® 8.4" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity

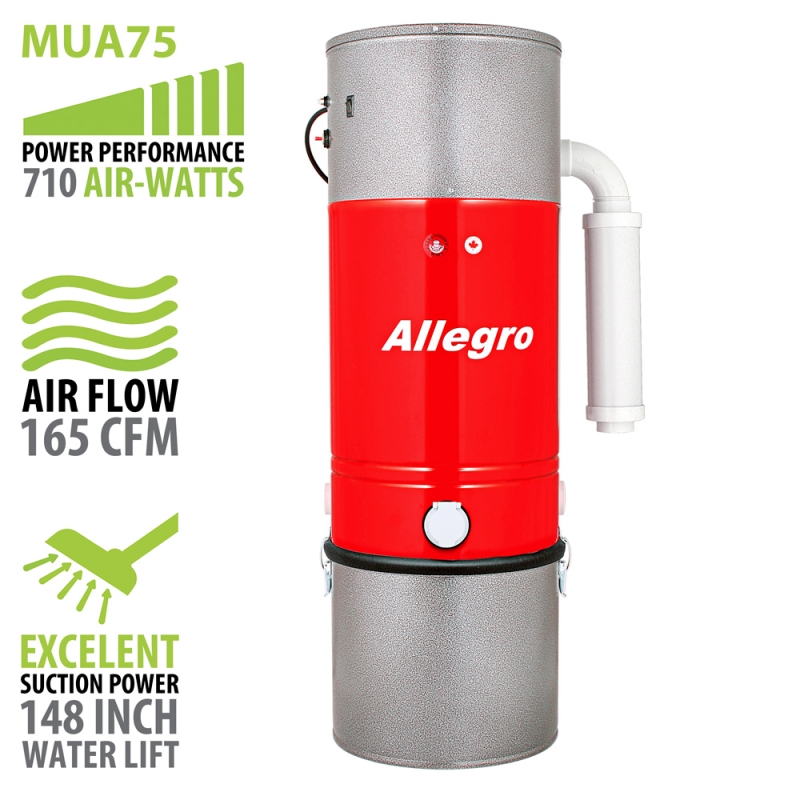

Air Watts:  710 Air Watts of efficient cleaning power
Air Flow:  Air flow of 165 cubic feet per minute
Suction Power:  Excellent suction power of 148 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 13.8 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1750 watts of powerful performance making cleaning that much easier!

 Image title

Construction: 14" width  x 43" height with a 8 gallon dirt pail. Made of all steel construction. 41lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration SystemsThis permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

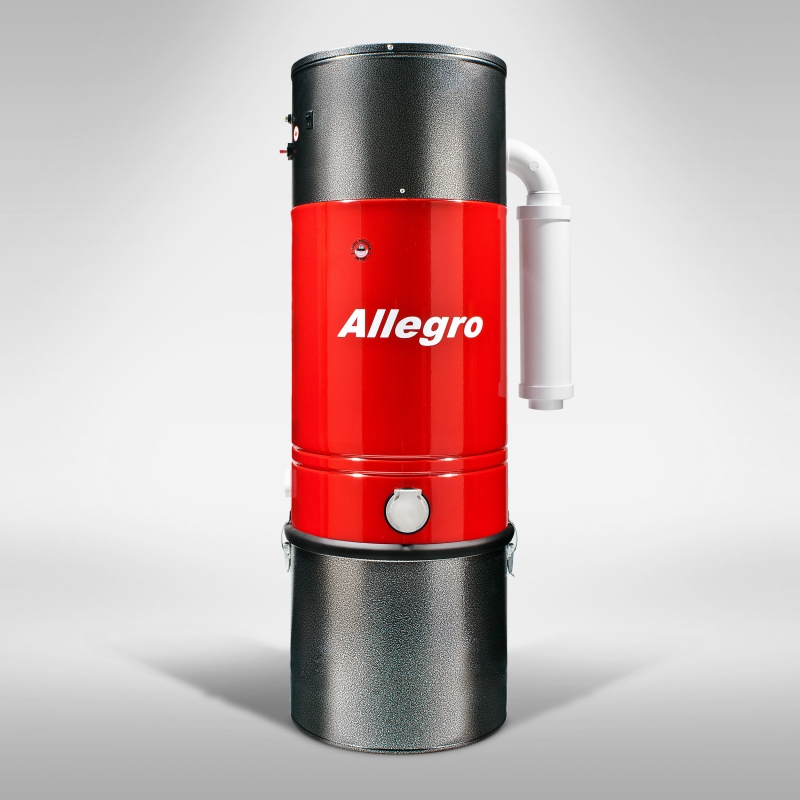

Allegro Central Vacuum Acoustic Eco Green MUA75 Power Unit

Image title Image title Image title Image title

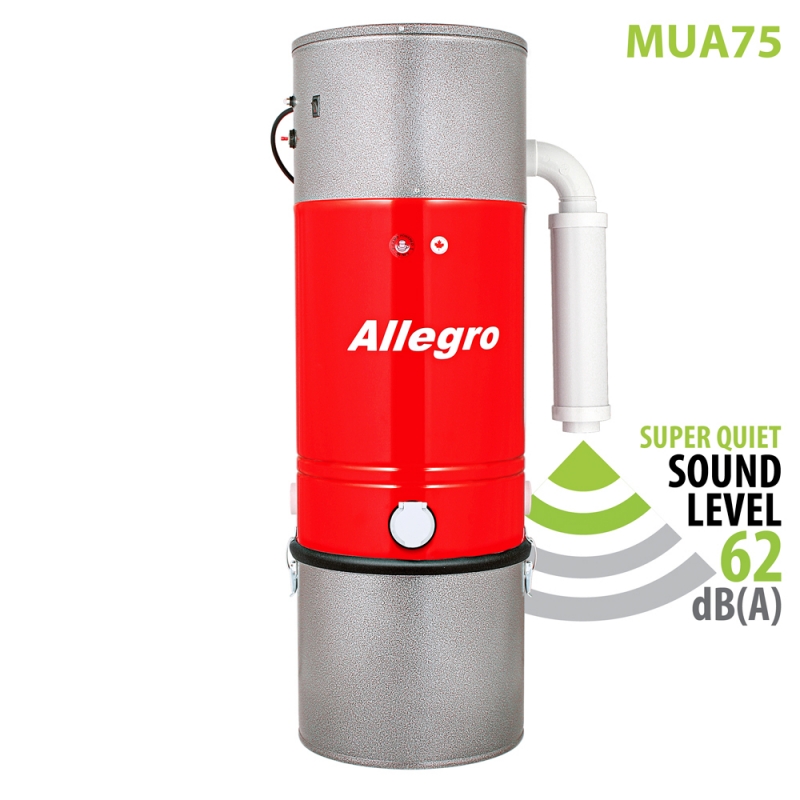

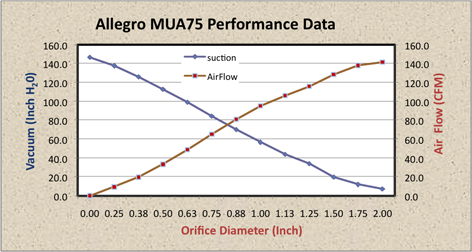

Acoustic Unit Technical Specifications

Frequently Asked Questions

 Image title

Qty.:
1,099.99 USD
Add to cart

Technical characteristics

Main parametersModel - MUA75
Cleaning Area15,000 sq. foot
Suction Power148 inch water lift
Air-Flow165 CFM
Air-Power710
Motor2 Stage, 8.4", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1750 watt
Max. Amps15.8
Hertz60 Hz
Dust IntakeDual
