10 mm shaft and bearing system
Model: 119916-12
Operating Voltage: ~110 - 120v
Fan System: 2 stage
Size: 7.2" (183 mm) diameter
Bearings: Double ball bearings
Tangential bypass discharge
Fan end Bracket: Aluminum
Commutator Bracket: Aluminum
Max Amp: 15.8
Max R.P.M.: 27,250
Cycle: 50/60 Hz
Suction (in. H20): 141.4
Air Flow (cfm): 102.2
Air- Watts: 610
Input Power (watt): 1800
Max. Efficiency: 31%

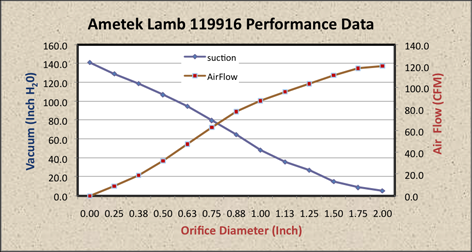

Typical motor performance at ~120 volt, 60 Hz, test data is corrected to standard conditions of 29.92 Hg, 68ยบ F. ASTM F2105
Designed to handle clean, dry, filtered air only.
Main parameters | Model - 119916-12 |
---|---|
Suction Power | 141.4 inch water lift |
Air-Flow | 120.2 |
Air-Power | 610 |
Motor | 2 Stage, 7.2", Bypass, Tangential Discharge |
Max. Amps | 15.8 |
Operating Voltage | ~ 110 - 120 v |
