PRODUCT / Vacuum Cleaner Replacement Parts / Ametek Lamb Replacemnt Motors / 116765-13

116765-13

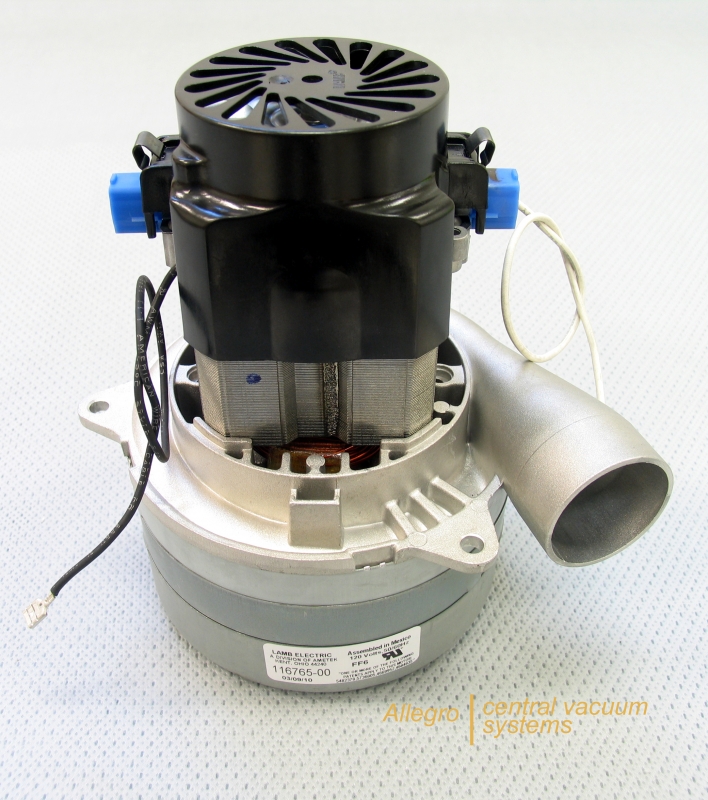

Ametek Lamb Replacement Central Vacuum Motor 116765-13


 Ametek Lamb Electric Vacuum Motor



Features patented air seal bearing protection, U.S. Patent # 4,088,424 and epoxy painted fan case.













Product Details

Model:                       116765-13

Operating Voltage:      ~110 - 120v

Fan System:               3 stage

Size:                          5.7" (145 mm) diameter

Bearings:                           Double ball bearings

 Motor Type

Tangential bypass discharge

Construction

Fan end Bracket:          Aluminum

Commutator Bracket:    Aluminum

Physical Parameters

Max Amp:                 13.13

Max R.P.M.:              25,312

Cycle:                                50/60 Hz

Suction (in. H20):       136.0

Air Flow (cfm):           95.3

Air- Watts:                 465

Input Power (watt):     1700

Max. Efficiency:         31%



Typical motor performance at ~120 v, test data is corrected to standard conditions of 29.92 Hg, 68ยบ F.



Note:

 Designed to handle clean, dry, filtered air only.

Allegro Lamb Powered

Click here for Central Vacuum Motor 116765-13 Technical Bulletin



This 116765 vacuum motor may say 6765. Replaces 116565, 6565 but is 1/4" TALLER.

Height 8", Bolt Height 3"




Click here for Central Vacuum Motor 116765 Technical Specifications / Bulletin

Qty.:
199.99 USD
Add to cart
