PRODUCT / Central Vacuum Power Units / MU4900

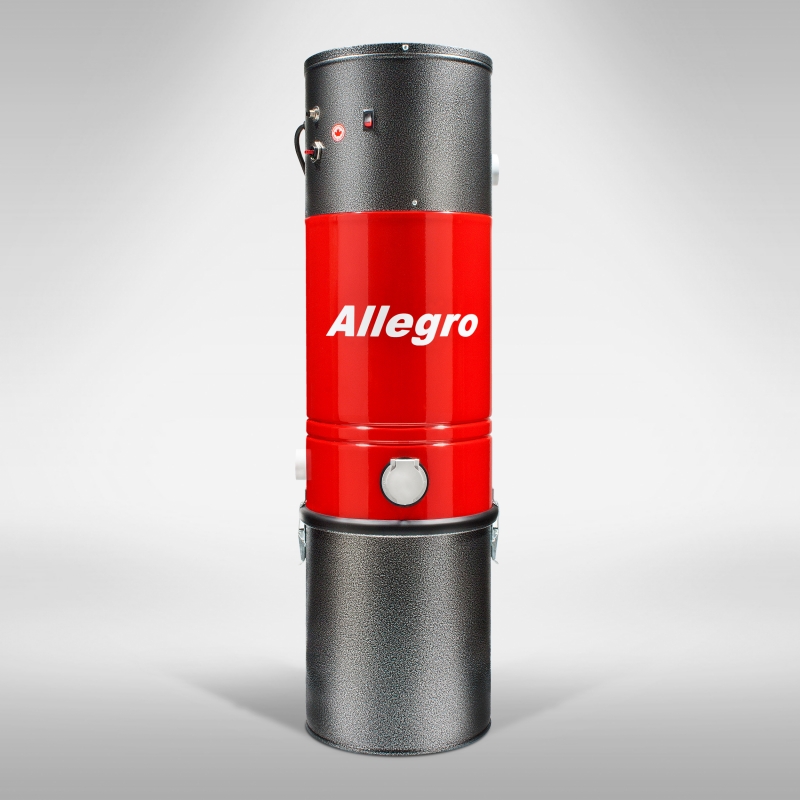

MU4900

Force Allegro Central Vacuum System

Allegro MU4900 Champion Central Vacuum has over 30% more air power than the MU4200 and is designed and rated for homes up to 8,000 sq. ft. (800m2)



UPC: 744702137458


Motor:

 Lamb powered, 3-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  650 Air Watts of efficient cleaning power
Air Flow:  Air flow of 108 cubic feet per minute (CFM)
Suction Power:  Excellent suction power of 162 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 16.5 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1900 watts of powerful performance making cleaning that much easier!

Image title

Construction: 12" width  x 41" height with a 5 gallon dirt pail. Made of all steel construction. 32 lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems. This permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.


Allegro Central Vacuum MU4500 Performance Graph

Image title Image title Image title



ALLEGRO STANDARD CENTRAL VACUUM TECHNICAL BULLETIN



ALLEGRO'S FREQUENTLY ASKED QUESTIONS



 Image title

Qty.:
650.00 USD
Add to cart

Technical characteristics

Main parametersModel - MU4900
Cleaning Area8,000 sq. foot
Suction Power162 inch water lift
Air-Flow108 CFM
Air-Power650 Air Watts
Motor3 Stage, 5.7", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1900 watt
Collection Capacity5 gallon (19 L)
Utility Inletyes
Max. Amps16.5 amps
Hertz60 Hz
Dust IntakeSingle
