PRODUCT / Vacuum Cleaner Replacement Parts / Ametek Lamb Replacemnt Motors / MA2233A

MA2233A

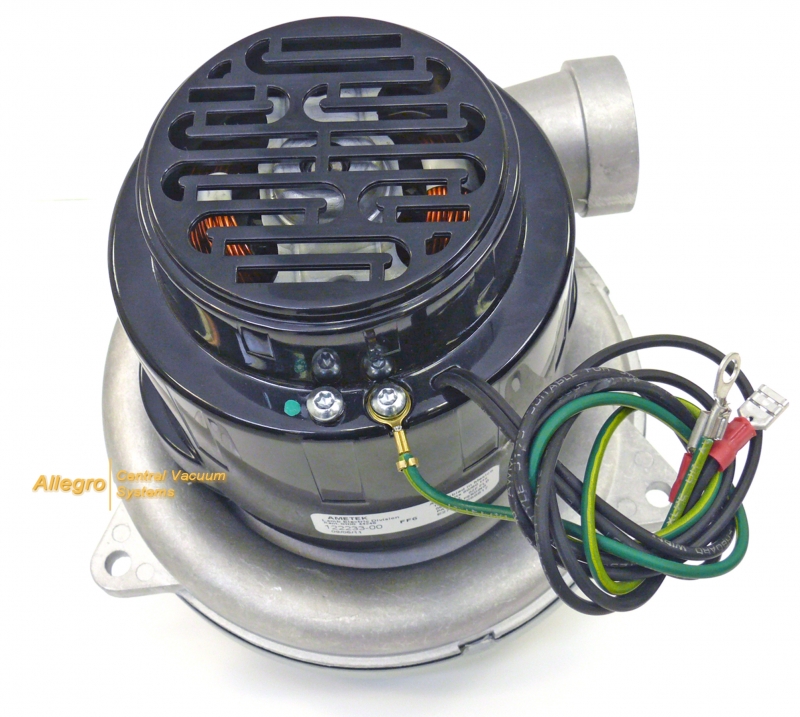

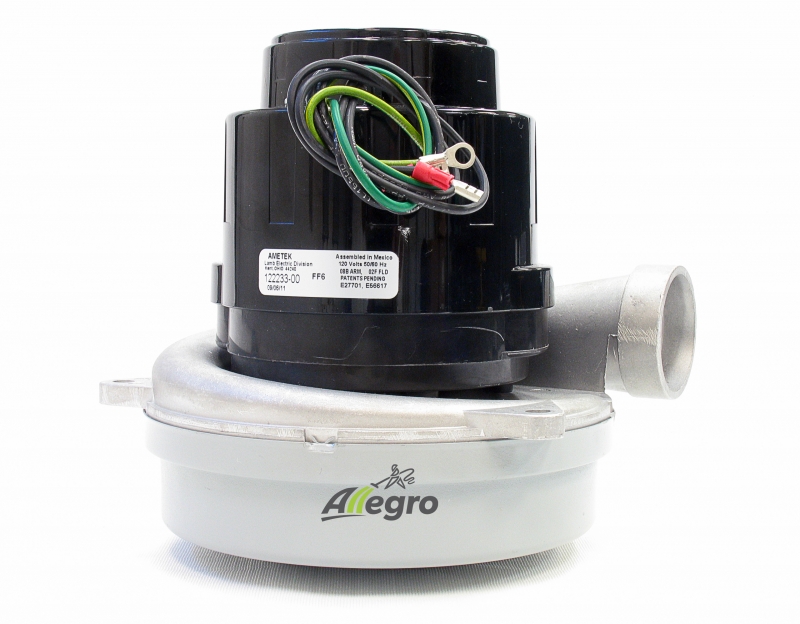

Allegro Central Vacuum Motor Da Vinci 122233-00




 Ametek Lamb Electric Vacuum Motor

Lamb "Green Power Label"

 True tangential discharge bracket

Improved Sound Quality

High efficiency cooling system

1500+ hours life (curved carbon brush)











Product Details

Model:                       122233-00

Operating Voltage:      ~110 - 120v

Fan System:               2 stage tapered fan

Size:                          6.6" (162 mm) diameter

Bearings:                           Double ball bearings; 10 mm output

Motor Type

Tangential bypass discharge

Construction

Fan end Bracket:          Cast Aluminum

Commutator Bracket:    Cast Aluminum

Lamination:                   High-Efficiency "Galaxy"

Physical Parameters

Max Amp:                 14.0

Max R.P.M.:              29,331

Cycle:                                50/60 Hz

Suction (in. H20):       131.5

Air Flow (cfm):           138.8

Air- Watts:                 625

Input Power (watt):     1680

Max. Efficiency:         40%



Typical motor performance at ~120 v, test data is corrected to standard conditions of 29.92 Hg, 68ยบ F.



Note:

 Designed to handle clean, dry, filtered air only.



Click here for Central Vacuum Motor 116472 Technical Bulletin




Qty.:
299.99 USD
Add to cart

Technical characteristics

Main parametersModel - MA2233A
Suction Power131.5 inch water lift
Air-Flow138.8 CFM
Air-Power625
Motor2 Stage, 6.6", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1680
Max. Amps14.0
