PRODUCT / Allegro Central Vacuum Packages / PKA54002
PKA54002
Allegro Central Vacuum 8,000 sq.ft. Complete Electric Powerhead and Hose
Motor: | Lamb powered, 3-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity | |
| Air Watts: | 650 Air Watts of efficient cleaning power | |
| Air Flow: | Air flow of 108 cubic feet per minute (CFM) | |
| Suction Power: | Excellent suction power of 162 inch H2O lift | |
| Max Amps: | Save on energy costs with a maximum current of 16.5 Amps | |
| Volts: | Compatible with standard ~110 - 120v service. | |
| Input Power | 1930 watts of powerful performance making cleaning that much easier! |

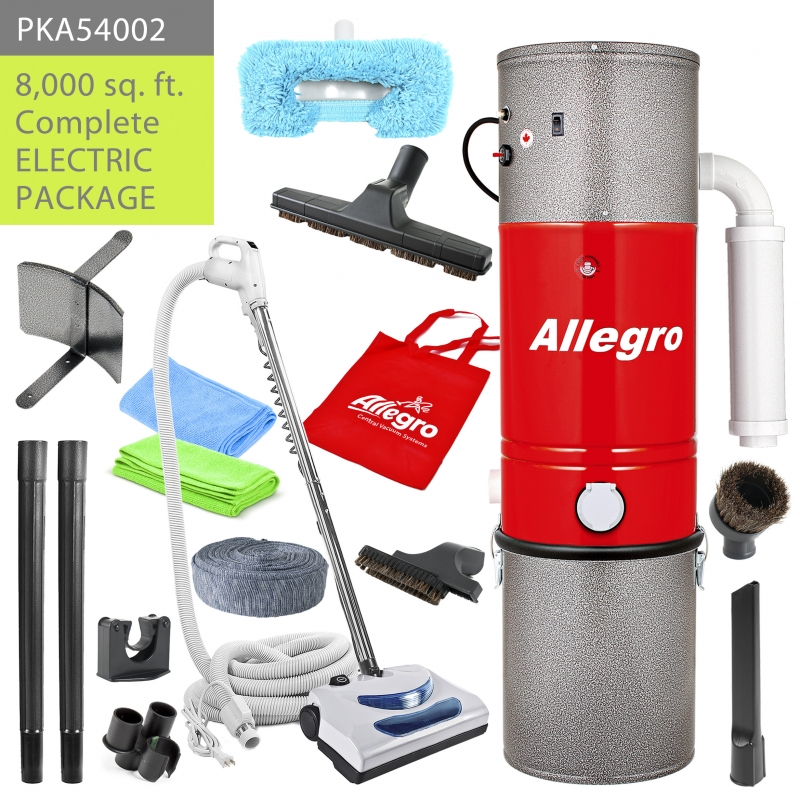

The Package Includes:

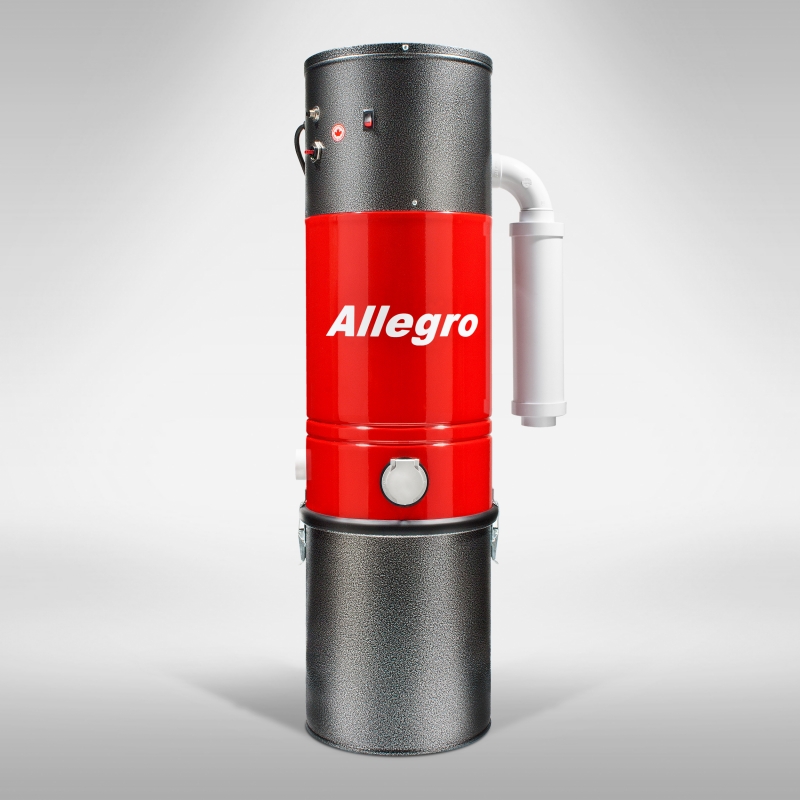

POWER UNIT MUA54
Acoustic Power Unit for homes up-to 8,000 sq. ft.
UPC Code: 609207104018
Motor: 3-Stage, 5.7" single speed all metal construction tangential bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.
POWERHEAD:
At 5,500 r.p.m. the METAL beater bar provides optimal cleaning performance
Easy to reach under the beds, or furniture with a low profile and swivel neck configuration
It is an automatic height adjust with four soft wheels for exceptional maneuverability
Headlight systems
Compact, light-weight electric Power brush
Electronic overload sensor for automatic cut-out with rest button
Durable Cogged belt for positive drive
On/off foot pedal switch
Power cord that is 45 inches long with two pronged polarity plug

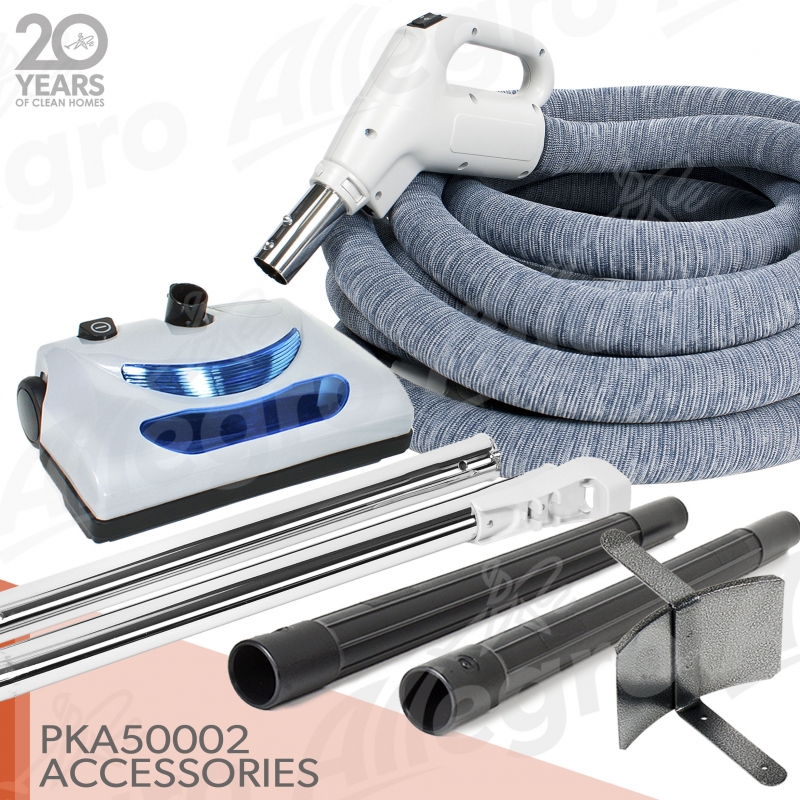

ELECTRIC HOSE:
Hose Length: 30 Foot (9 meter)
Hose Configuration: 8 Foot supply cord "Pigtail" with standard ~110 two-prong electrical plug
Dual voltage (~110v , 24 vdc) crush-proof, light-weight hose with ergonomic easy handle featuring 3-way control switch.
ON / OFF Controls for vacuum (suction) / Power nozzle (carpet sweeper)
360 degree full swivel handle for tangle-free operation
EXTENSION WANDS:
Set of 19 inch Chromed Steel Wands with Cord Management Cord Holder for integrated electrical connection and Button-Lock locking mechanism

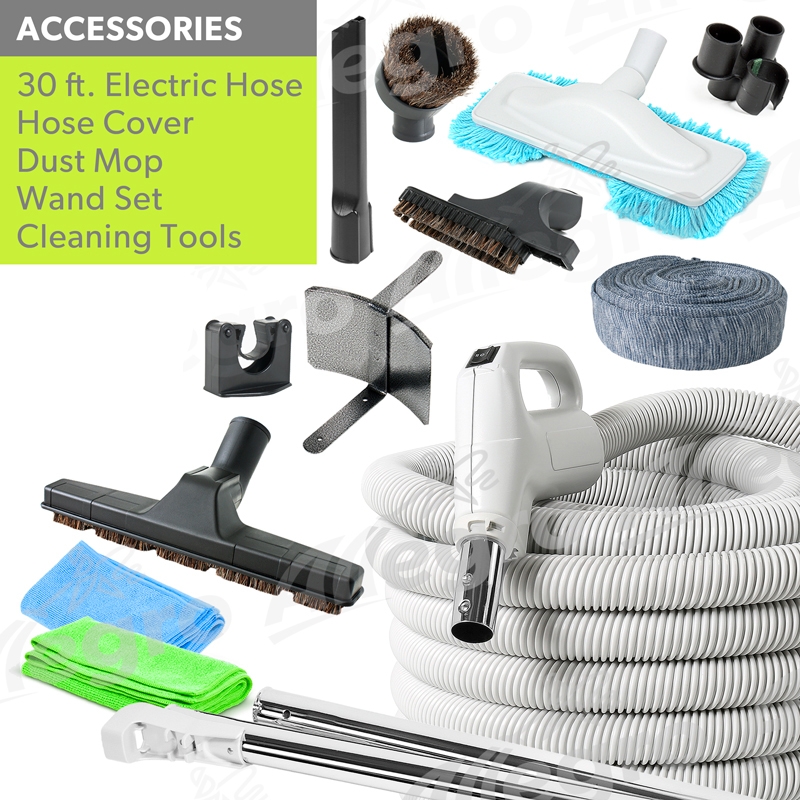

ACCESSORIES INCLUDED:
* 10 inch Floor Tool with non-scratch horsehair bristles
* Upholstery Nozzle with slide-on natural horsehair brush
* Dusting Brush with removable and washable non-scratch horsehair bristles
* 9 inch standard crevice tool
* Epoxy coated all metal sturdy Hose-rack
* Extra set of plastic wands for floor brush - the plastic wands are the best suitable ones for hardwood flooring. If dropped by accident, your flooring will not be damaged.
* 30 Foot Hose Cover / Sock
* Exhaust Muffler
* Tool Caddy
* Wand Clamp
* Microfiber Dust Mop
* Two Microfiber Cleaning Cloth, very handy for a quick dusting
Allegro Central Vacuum Technical Review
Visit our Central Vacuum Frequently Asked Questions & Answer
Technical characteristics
| Main parameters | Model - PKA54002 |
|---|---|
| Cleaning Area | 8,000 sq. foot |
| Suction Power | 162 inch water lift |
| Air-Flow | 108 CFM |
| Air-Power | 650 Air Watts |
| Sound Level dB(a) | 64 |
| Motor | 3 Stage, 5.7", Bypass, Tangential Discharge |
| Power Unit Voltage | ~ 110 - 120 v |
| Shipping Weight | yes |
| Max. Amps | 15.7 |
| Carpet Height Adjust | Floating |
| Headlight | yes |
| Overload Protector | Manual Reset |
| Hertz | 60 Hz |
| Hose Length | 30 Foot (9 m) |
| Hose Operating Voltage | Dual voltage ~ 120 v and 24 v dc |
| Suction Relief Valve | yes |
| Wall End Cuff Size | 1.5 inch O.D. |
| Warranty | 10-Year |
