PRODUCT / Central Vacuum Systems Installation Kits / Euro Valve Installation Kits / ZIK042-I

ZIK042-I

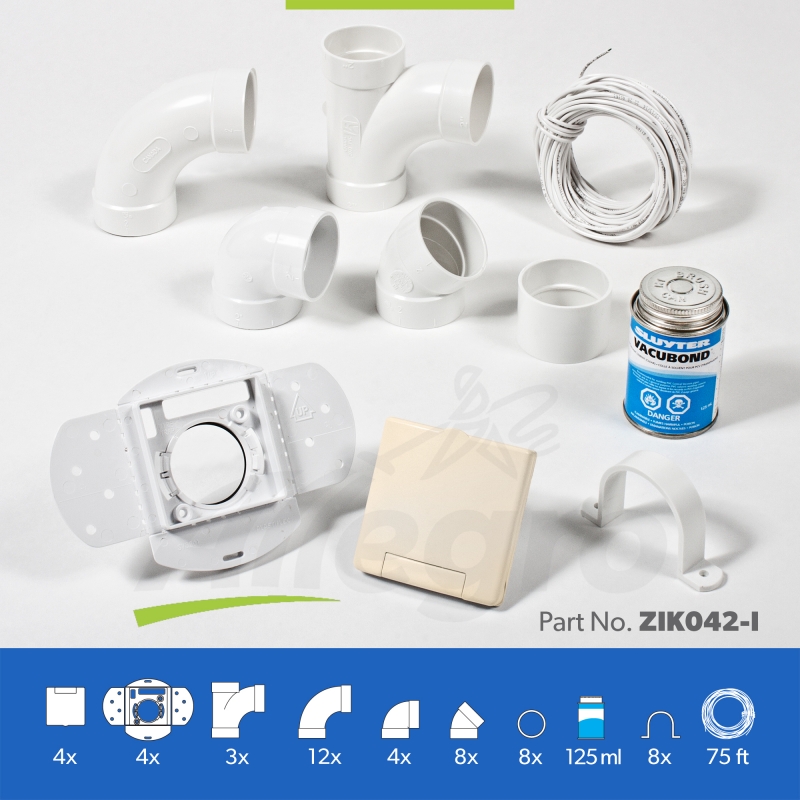

Central Vacuum Almond Square Door Deluxe 4-Inlet Installation Kit





















This kit includes necessary fittings for complete installation of a Central Vacuum System for an average size three to four bedroom homes. The fittings are designed to fit standard Central Vacuum PVC pipe with 2" O.D. and 1.87" I.D.



Central Vacuum Almond Square Door Deluxe 4-Inlet Installation Kit

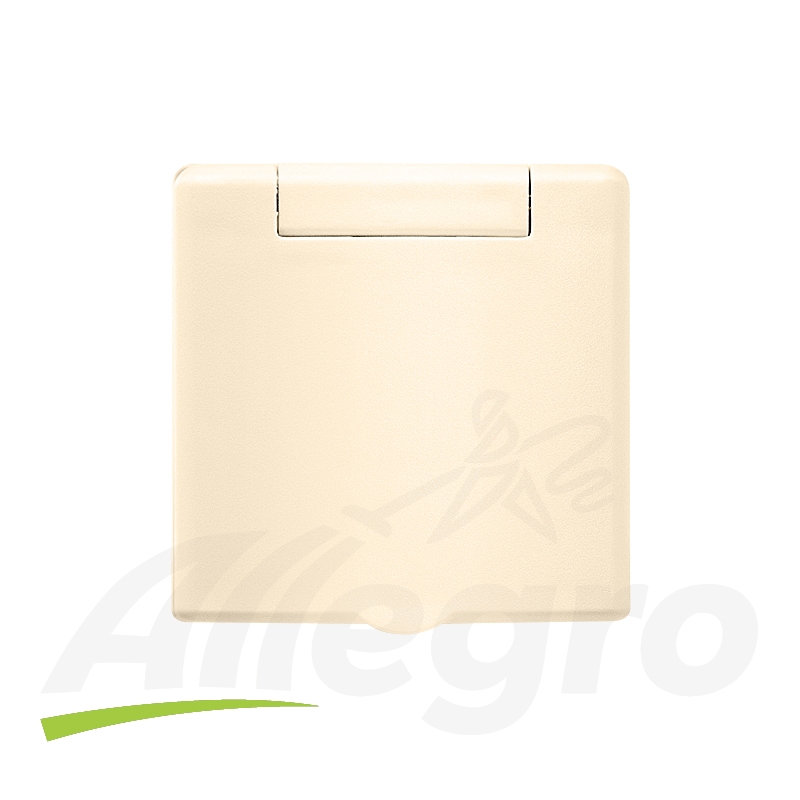

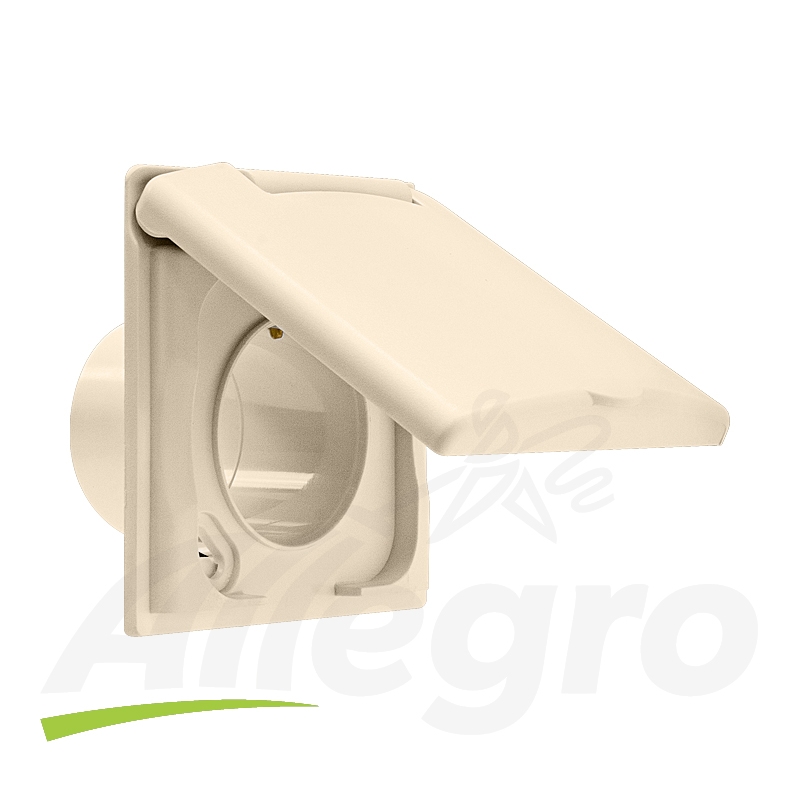

  • 4 x Square Door Deluxe Inlet Wall Valve (WHITE)

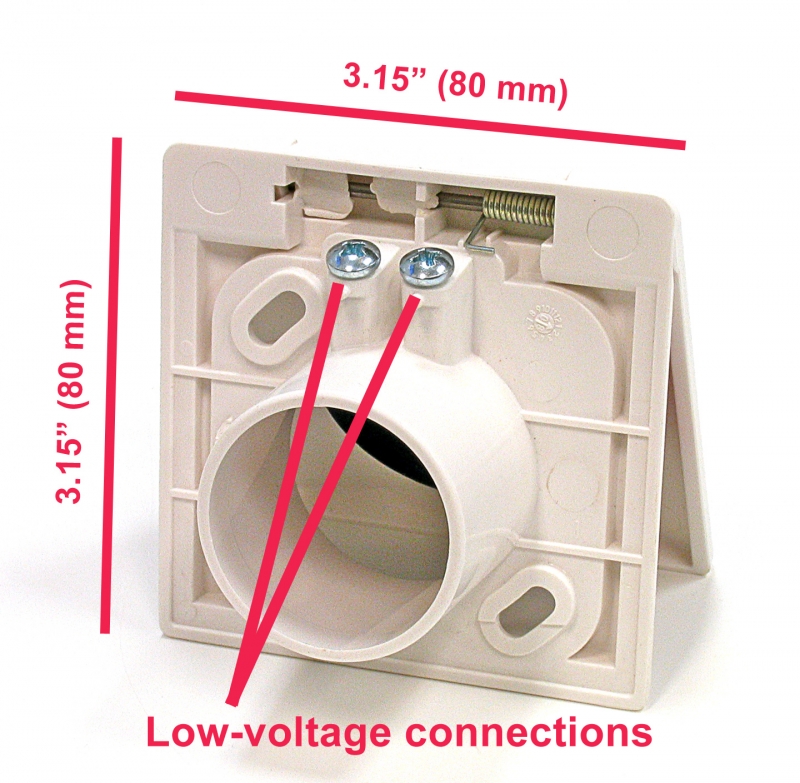

    The Wall Inlet Valves are equipped with the low-voltage connections for remote turn ON/OFF.

  • 4 x Mounting Plate (for the valves)
  • 3 x 90 degree "Tee" Elbow

  • 12 x 90 degree Sweep Elbow
  • 4 x 90 Sharp Elbow (you must use these only at the back of each Inlet Valve)

  • 8 x 45 degree Elbow

  • 8 x Stop Coupling (to join the 2" PVC pipe together)
  • 125 ml Solvent Cement
  • 8 x pipe strap
  • 75 foot  Low-voltage wire











Low-voltage wire specifications: Two conductor 22 gauge typical speaker wire







Qty.:
68.99 USD
