Allegro RV Vacuums / Installation Instructions

 rv
Power Unit Mounting 5 Easy Steps

 Determine the location of wall mount bracket. The height of Power Unit is 20" in total. You should allow at least 4" clearance from the top. Therefore top screw hole on wall mount bracket should be 12" from the floor. The distance between top and bottom screw holes is 1.5", or the bottom screw hole is 10.5" from the floor.

 Screw top & bottom screws firmly at the height described above.

 Hang Power Unit from the wall mount bracket. At this point your Power Unit is mounted securely.

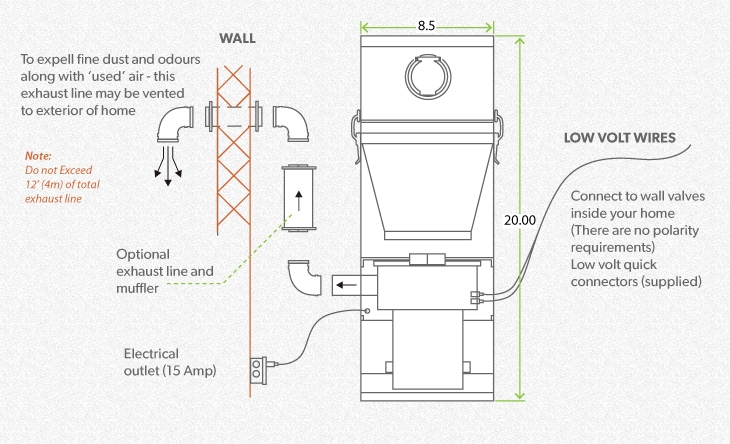

 Connect optional low-voltage wires, vacuum line and/or exhaust line* as shown below.




 Plug Power Unit cord into a 15 Amp electrical outlet and test the Power Unit with on/off switch.

Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Do not exceed 12 ft (4m) of total exhaust line.



Technical Bulletin - North American RV Units

Features and Qualities

SERIES MODEL

RV Vacuum
MU2100

Size of home - up to (sq ft) 3,000
Suction power (water lift) 125.0
Air-Flow (CFM) 121
Air Watts 525
Sound Power Levels dB(A) 75 dB(A)
Size (inch) 4.7
Voltage (volt) 120
Maximum amps 13.8
Maximum Power (watt) 1675
Fan Stages 2
Diameter (inch) 8.5
Height (inch) 20
Collection Capacity (gallon) 0.5
Washable Filtration System
LED Monitor Light (Green)
Utility Valve on Main Unit
Printed Circuit Board
Suggested Maximum Tubing (foot)                                   40
Weight (lb.) 15
Carton Size (inch) 14 x 14 x 27

LEGEND    = Standard



Technical Bulletin - International RV Units

Features and Qualities

SERIES MODEL RV Vacuum
MU2100E
Size of Home - up to (sq. meter) 300
Suction (mm H2O lift) 2.353
Air-Flow (L/sec.) 59,5
Air-Watts 414
Size (mm) 145
Voltage 230
Maximum Amps 5,3
Max. Power (watt) 1135
Fan Stages 2
Diameter (cm) 21,6
Height (cm) 50,8
Collection Capacity (Litres) 0,5
Washable Filtration System
LED Monitor Light (Green)
Utility Valve on Main Unit
Printed Circuit Board
Shipping Weight (kg) 7
Carton Size (cm)        35,6x35,6x 68,6

LEGEND    = Standard
