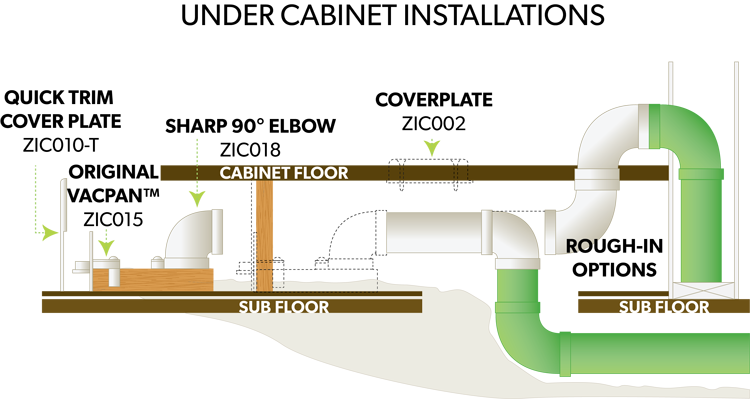

Access From Below If access is available from below, cut an access hole through the sub floor underneath the cabinet, positioned so that final piping connections can be made by reaching through the access hole.
Access Through Cabinet Floor Access can be made through the finished cabinet floor. Cut a 2-3/4" x 3-1/2" (70mm x 89mm) access hole, positioned so that final piping connections can be made by reaching through the access hole.

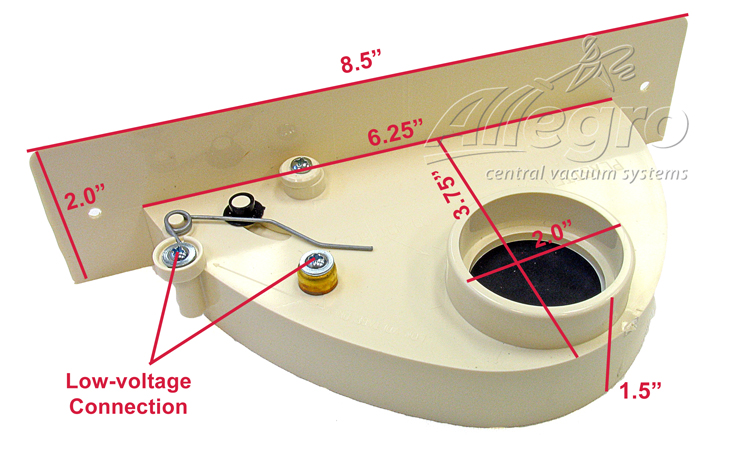

Through Cabinet Toe Kick Access can be made through the cabinet toe kick by cutting up to a 10-1/2" x 4" (254mm x 95mm) slot and using the Automatic Dustpan Quick Trim Cover Plate (included or Allegro part ZIC010-T sold separately). If required, score back of Quick Trim Cover Plate with a knife and snap along grooves for height adjustment. • Attach low voltage wires to Automatic Dustpan terminal connections marked "low voltage only". • Slide Automatic Dustpan into mounting slot and secure to toe kick using two #6 screws provided. • Reach through access hole and make final piping connections.
IN WALL INSTALLATIONS
• Automatic Dustpan can be installed between wall studs inside walls. • Automatic Dustpan should be located tight to one side in stud space. • Once the Automatic Dustpan location is determined, cut a 6-3/4" long x 1-3/4" high slot in the wall and baseboard to accept the Automatic Dustpan. • The 2x4 wall bottom plate between the two studs must be removed. This can be achieved from below using a hole-saw. In new home construction, the bottom wall plate can be removed directly. A 6-3/4" length of 2x4 can be used as a temporary rough in block that will force all trades to finish around, leaving a slot for the VACPAN Floor contractor must run flooring under block. • Run vacuum tube piping and low voltage wire from the main line to VACPAN location. • Access for final piping connections must be made.
Access From Below If access is available from below, cut an access hole through the sub floor underneath the wall between the studs, positioned so that final piping connections can be made by reaching through the access hole.
Access Through Wall Access can be made through the finished wall. Cut a 2-3/4" x 3-1/2" access hole, positioned so that final piping connections can be made by reaching through the access hole. Allegro part # ZAS002 Temporary Cover Plate can be used to cover the hole after installation. • Attach low voltage wires to VACPAN terminal connections marked "low voltage only". • Slide VACPAN into mounting slot and secure to wall using two #6 screws provided. • Reach through access hole and make final fitting connections
