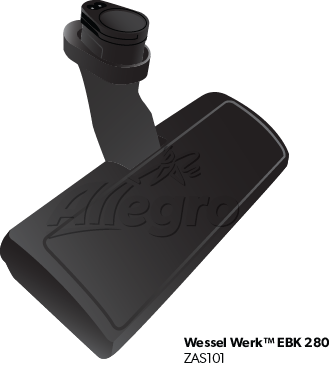

User's Manuals / Allegro Central Vacuum Compact Electric Power Brush

Operating Manual for Power Head

With and without headlight do not put any object into vacuum intake openings. Do not use with any opening blocked. Keep vacuum intake openings free of dust, lint, hair or anything that may reduce airflow. This nozzle creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts. Do not place motorized nozzle on furniture or stairs as the brush roll may cause damage. Place nozzle on floor with the handle in storage position while using attachments. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes. Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt. Use extra care when cleaning on stairs. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas when they may be present. Store your nozzle indoors in a cool, dry area. Keep your work area well lighted. Unplug electrical appliances before vacuuming them.


CLEANING

It may happen that your agitator brush becomes blocked or less effective. This may be caused by excessive hairs and threads wrapped around the brush roller. Always unplug the nozzle from the power supply first. Cleaning the brush roller. Insert the points of a pair of scissors into the brush roller slot. Move the scissors to catch the threads and hairs in the scissors. Cut the threads of hairs and remove them manually or using a small sized pair of pliers. Should your nozzle cease to pick-up debris: This can be caused by an obstruction in the intake and or neck of the power nozzle. This can be caused when excessively large or long debris, like paper or a sock, is lodged in the intake and/or neck area of the nozzle. Always unplug the nozzle from the power supply first. Clearing an Obstruction. Remove the wand from the nozzle by depressing the button on the nozzle neck and pulling the nozzle and wand apart. Look into the neck and remove any visible debris. Look into the intake area of the nozzle and remove any visible debris.

Replacement Parts    EBK 340 Parts

Black w/o Light 10.9 007-316
Black w/o Light 10.9 007-318 (parts differ only where noted)
